CSOLabelPlacementGlobal¶
-
MLModule¶ author MeVis Medical Solutions AGpackage MeVisLab/Standarddll SoCSOdefinition SoCSO.def see also SoView2DCSOExtensibleEditor,CSOLabelRenderer,SoCSOAnnotationDeviceCoordinates,CSOLabelPlacementLocal
Purpose¶
The module CSOLabelPlacementGlobal implements an automatic label placement strategy that considers all CSOs on a slice.
Usage¶
Attach this module to a CSOLabelRenderer or a SoCSOAnnotationDeviceCoordinates module.
Details¶
The hull outline is computed according to the selected hull mode.
By default, the placement strategy computes the convex hull of all CSOs on a slice.
If Hull Points from CSO List is selected, the first CSO in the current slice from the input inHullCSOList is used as the label hull.
If none is found, the default placement strategy is used to compute the hull.
After the hull is defined, rays are computed from the center of that hull; the angles between consecutive rays are constant and there are numCSOs + Additional Slots many rays. For example, if there are 4 CSOs and no additional slots should be used, there will be 4 slots: to the east, south, west, and north of the center, in that order.
The angles where labels can be placed (relative to the center point) can be restricted by setting Start Angle and End Angle.
For each ray, the crossing point with the hull is computed; note that the hull can be enlarged by the Device Offset value. This leads to crossing positions a bit farther away from the center.
Finally, all shortest distances between the CSOs and the position slots are computed and used to fill a weight matrix for computing the best position slot by solving it as an assignment problem, using a Kuhn-Mankres Hungarian solver.
The label for a CSO is placed to a corresponding slot for an assignment where the overall error is smallest.
Input Fields¶
inHullCSOList¶
-
name:inHullCSOList, type:CSOList(MLBase)¶ A list of CSOs that can be used as label hulls.
For accessing this object via scripting see the Scripting Reference:MLCSOListWrapper.

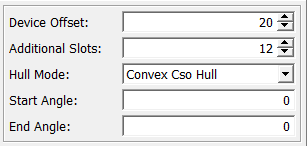

Parameter Fields¶
Field Index¶
Additional Slots: Integer |
Device Offset: Float |
End Angle: Float |
Hull Mode: Enum |
Start Angle: Float |
Visible Fields¶
Device Offset¶
-
name:deviceOffset, type:Float, default:20¶ Sets the initial distance of a label to the convex hull in pixel.
Additional Slots¶
-
name:additionalSlots, type:Integer, default:12, minimum:0¶ Sets the number of additional slots for placing labels around the convex hull around all CSOs.
Hull Mode¶
-
name:hullMode, type:Enum, default:CONVEX_CSO_HULL¶ Defines how the label hull is calculated.
Values:
| Title | Name | Description |
|---|---|---|
| Convex Cso Hull | CONVEX_CSO_HULL | Calculates the convex hull of all CSOs with a label |
| Hull Points From Cso List | HULL_POINTS_FROM_CSO_LIST | Uses a CSO in the current slice from input inHullCSOList as label hull |
