Basic list class template combining properties of ListBase and a vector of the template argument type. More...

#include <mlListBase.h>

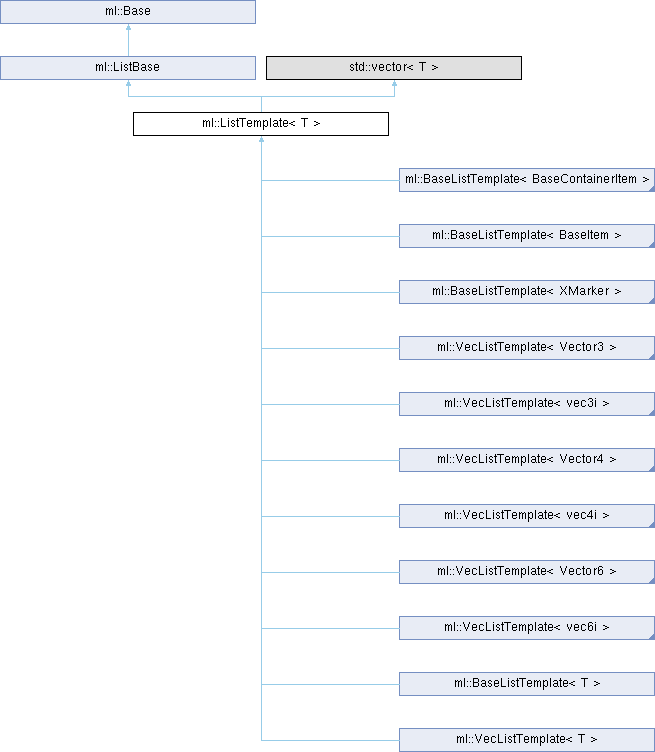

Inheritance diagram for ml::ListTemplate< T >:

Public Types
typedef T	itemType
	Declare type name for item type (this allows declarations like: ObjectList::itemType obj) More...

Public Types inherited from ml::ListBase
enum	ActionClass { ActNone = 0 , ActUnknown , ActNew , ActSelect , ActModify , ActDelete , ActInsert , ActInsertOvw , ActNumActions }
	Constants to describe the type of action most recently performed. More...

Public Types inherited from ml::Base
enum	PersistenceInterface { PersistenceByString , PersistenceByTreeNode , PersistenceByStream }
	This enum describes the different persistence interfaces available. More...

Public Member Functions
Constructors
	ListTemplate ()
	Standard constructor, disables persistence. More...

	ListTemplate (bool persistance)
	Special constructor to explicitly enable/disable persistence. More...

	ListTemplate (const ListTemplate &other)

Abstract list access
size_t	getSize () const override
	Get number of list elements. More...

void	clearList () override
	Clear complete list. More...

ListTemplate< T > &	operator= (const ListTemplate< T > &list)
	Assignment operator. More...

ListTemplate< T > *	clone () const override
	Create a copy of (*this) using the ML runtime system and the '='-operator. More...

ListTemplate< T > *	deepCopy () const override
	Create a deep copy of the list. More...

Public Member Functions inherited from ml::ListBase
	ListBase (bool persistance)
	Constructor. Derived class should indicate whether persistence is implemented. More...

	ListBase (const ListBase &other)

virtual BaseItem *	getItemAt (MLssize_t)
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually returns the item at the given index. More...

virtual const BaseItem *	getConstItemAt (MLssize_t) const
	Same as getItemAt(MLssize_t index) for constant access. More...

virtual void	insertItemAt (MLssize_t, const BaseItem *)
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually inserts the item at the given index. More...

virtual void	modifyItemAt (MLssize_t, const BaseItem *)
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually modifies the item at the given index. More...

virtual void	deleteItemAt (MLssize_t)
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually deletes the item at the given index. More...

virtual void	selectItemAt (MLssize_t)
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually selects the item at the given index. More...

virtual const RuntimeType *	getItemTypeId () const
	This virtual function is reimplemented in BaseListTemplate<T>, where it actually returns the item class' type id. More...

virtual void	setAction (ActionClass actionClass, MLssize_t id, MLssize_t index)
	Set actionClass, affected item id and index. More...

virtual void	setAction (ActionClass actionClass)
	Set actionClass for actions affecting the whole list. More...

virtual void	getAction (ActionClass &actionClass, MLssize_t &id, MLssize_t &index) const
	Get actionClass, affected item id and index. More...

virtual ActionClass	getActionClass () const
	Get actionClass of last action. More...

virtual MLssize_t	getActionId () const
	Get id of item affected by last action. More...

virtual MLssize_t	getActionIndex () const
	Get index of item affected by last action. More...

virtual MLssize_t	getCurrentIndex () const
	Get index of currently selected item, or -1 if no item selected. More...

virtual bool	isModified () const
	Tests, if the last action has been an action that has modified the content of the list. More...

virtual bool	hasPersistance () const
	Test if persistence is available and enabled. More...

virtual void	setPersistance (bool persistance)
	Enable/disable persistence functionality. More...

	ML_SET_ADDSTATE_VERSION (0)
	Set addState version number. More...

Public Member Functions inherited from ml::Base
	Base ()
	Constructor. More...

virtual	~Base ()
	Destructor. More...

bool	isOfAllowedType (const std::vector< const RuntimeType * > &types) const
	Check if this object's type is equal to or derived from one of the types given in the argument. More...

virtual bool	isRefCountedBase () const
	Returns if the instance is derived from RefCountedBase. More...

virtual std::string	detailString () const
	Return a string describing this object. More...

virtual bool	implementsPersistence (PersistenceInterface) const
	Override this method to declare which persistence interfaces are implemented by your derived class. More...

virtual void	writeTo (AbstractPersistenceOutputStream *) const
	Write the objects state to the data stream object. More...

virtual void	readFrom (AbstractPersistenceInputStream *, int)
	Read the objects state from the data stream object. More...

List persistence
Return a string representation of the list object.
std::string	persistentState () const override
	Returns a string describing the object's internal state. More...

void	setPersistentState (const std::string &state) override
	Initialize the list object from the string state. More...

void	addStateToTree (TreeNode *parent) const override
	Attaches the state as children of the given parent node. More...

	ML_SET_ADDSTATE_VERSION (2)
	Set addState version number, version 2 indicates data saved by a 64 bit version. More...

void	readStateFromTree (TreeNode *parent) override
	Reads the object state from the children of the given parent node. More...

List item persistence
To implement persistence, overload getItemState() and setItemState(). Make sure that the string returned by getItemState() can be disposed by clearItemState(), or otherwise overload clearItemState() appropriately. The item's string representation may contain any character, including those used in the list string syntax: [],". The list persistence methods take care of quoting the item strings if necessary.
virtual std::string	itemState (typename ListTemplate< T >::const_iterator it) const
	Return a string representation of the item object. More...

virtual void	setItemState (typename ListTemplate< T >::iterator, const std::string &)
	Initialize the item object from the string state. More...

Additional Inherited Members
Static Public Attributes inherited from ml::ListBase
static const char *const	ActionClassNames [ActNumActions]
	Action class name constants. More...

Protected Member Functions inherited from ml::ListBase
char *	newString (const std::string &str) const
	Convenience method to create a copy of the string str allocated on the heap. More...

void	deleteString (char *str) const
	Dispose a string allocated with newString() More...

ListBase &	operator= (const ListBase &list)
	Assignment operator, used in derived list classes. More...

Protected Member Functions inherited from ml::Base

Detailed Description

template<class T>
class ml::ListTemplate< T >

Basic list class template combining properties of ListBase and a vector of the template argument type.

Basic list class template (derived from ListBase and std::vector) combining properties of ListBase and a vector of the template argument type. Implements persistence methods that iterate through the vector items and call corresponding persistence methods for each item.

To implement an instance of ListTemplate with a given type T, the following steps are necessary:

Derive a subclass from the template instance class ListTemplate<T>
Use the ML_CLASS_HEADER and ML_CLASS_SOURCE macros to implement the runtime type system for this class. In the ML_CLASS_SOURCE macro, use ListBase in the base class argument.
If persistence is desired for the new class, make sure to initialize the base class with ListTemplate<T>(true) in the constructor of the new class.
If desired, implement persistence for the item class T by overloading getItemState() and setItemState(). Make sure that the string returned by getItemState() can be disposed by deleteString(), or otherwise overload clearItemState() appropriately.
IMPORTANT: Make sure that the item class T has proper copy constructor and assignment operator (these are used by the STL).

Definition at line 311 of file mlListBase.h.

Member Typedef Documentation

◆ itemType

template<class T >

typedef T ml::ListTemplate< T >::itemType

Declare type name for item type (this allows declarations like: ObjectList::itemType obj)

Definition at line 317 of file mlListBase.h.

Constructor & Destructor Documentation

◆ ListTemplate() [1/3]

template<class T >

ml::ListTemplate< T >::ListTemplate ( )

inline

Standard constructor, disables persistence.

Definition at line 324 of file mlListBase.h.

◆ ListTemplate() [2/3]

template<class T >

ml::ListTemplate< T >::ListTemplate ( bool persistance )

inline

Special constructor to explicitly enable/disable persistence.

Definition at line 327 of file mlListBase.h.

◆ ListTemplate() [3/3]

template<class T >

ml::ListTemplate< T >::ListTemplate ( const ListTemplate< T > & other )

inline

Definition at line 329 of file mlListBase.h.

Member Function Documentation

◆ addStateToTree()

template<class T >

void ml::ListTemplate< T >::addStateToTree ( TreeNode * parent ) const

overridevirtual

Attaches the state as children of the given parent node.

BE SURE TO INCREASE THE VERSION NUMBER IN THE DECLARATION AND ADAPT readStateFromTree() TO THE NEW VERSION WHILE KEEPING IT DOWNWARD- COMPATIBLE!

Reimplemented from ml::ListBase.

Reimplemented in ml::BaseListTemplate< T >, ml::BaseListTemplate< BaseItem >, ml::BaseListTemplate< BaseContainerItem >, and ml::BaseListTemplate< XMarker >.

Definition at line 578 of file mlListBase.h.

References ml::TreeNode::addChild(), ML_ADDSTATE_SUPER, and ML_ADDSTATE_VERSION.

◆ clearList()

template<class T >

void ml::ListTemplate< T >::clearList ( )

inlineoverridevirtual

Clear complete list.

Reimplemented from ml::ListBase.

Reimplemented in ml::BaseListTemplate< T >, ml::BaseListTemplate< BaseItem >, ml::BaseListTemplate< BaseContainerItem >, and ml::BaseListTemplate< XMarker >.

Definition at line 342 of file mlListBase.h.

◆ clone()

template<class T >

ListTemplate< T > * ml::ListTemplate< T >::clone ( void ) const

overridevirtual

Create a copy of (*this) using the ML runtime system and the '='-operator.

Create a copy of (*this) using the ML runtime system.

Overwrite in derived classes if copying the list is not equivalent to copying the object (for instance, if the derived class has a global list description member). Returns NULL if a copy could not be created, or the cloned list otherwise.

Reimplemented from ml::ListBase.

Definition at line 670 of file mlListBase.h.

References ml::RuntimeType::canCreateInstance(), and ml::RuntimeType::createInstance().

◆ deepCopy()

template<class T >

ListTemplate<T>* ml::ListTemplate< T >::deepCopy ( ) const

inlineoverridevirtual

Create a deep copy of the list.

Reimplemented from ml::ListBase.

Definition at line 364 of file mlListBase.h.

◆ getSize()

template<class T >

size_t ml::ListTemplate< T >::getSize ( ) const

inlineoverridevirtual

Get number of list elements.

Implements ml::ListBase.

Definition at line 338 of file mlListBase.h.

Referenced by ml::VecListTemplate< T >::itemState(), and ml::VecListTemplate< T >::setItemState().

◆ itemState()

template<class T >

virtual std::string ml::ListTemplate< T >::itemState ( typename ListTemplate< T >::const_iterator it ) const

inlineprotectedvirtual

Return a string representation of the item object.

The string is allocated on the heap and is later disposed by clearItemState().

Reimplemented in ml::BaseListTemplate< T >.

Definition at line 437 of file mlListBase.h.

◆ ML_SET_ADDSTATE_VERSION()

template<class T >

ml::ListTemplate< T >::ML_SET_ADDSTATE_VERSION ( 2 )

Set addState version number, version 2 indicates data saved by a 64 bit version.

◆ operator=()

template<class T >

ListTemplate<T>& ml::ListTemplate< T >::operator= ( const ListTemplate< T > & list )

inline

Assignment operator.

Definition at line 347 of file mlListBase.h.

◆ persistentState()

template<class T >

std::string ml::ListTemplate< T >::persistentState ( ) const

overridevirtual

Returns a string describing the object's internal state.

Reimplemented from ml::Base.

Definition at line 481 of file mlListBase.h.

Referenced by ml::BaseListTemplate< T >::getItemState(), and ml::BaseListTemplate< T >::itemState().

◆ readStateFromTree()

template<class T >

void ml::ListTemplate< T >::readStateFromTree ( TreeNode * parent )

overridevirtual

Reads the object state from the children of the given parent node.

Reimplemented from ml::ListBase.

Reimplemented in ml::BaseListTemplate< T >, ml::BaseListTemplate< BaseItem >, ml::BaseListTemplate< BaseContainerItem >, and ml::BaseListTemplate< XMarker >.

Definition at line 606 of file mlListBase.h.

References ML_READCHILD_OPTIONAL, ML_READSTATE_SUPER, T, and ml::TNE_UnsupportedClassVersion.

◆ setItemState()

template<class T >

virtual void ml::ListTemplate< T >::setItemState	(	typename ListTemplate< T >::iterator	,
		const std::string &
	)

inlineprotectedvirtual

Initialize the item object from the string state.

Reimplemented in ml::BaseListTemplate< T >.

Definition at line 448 of file mlListBase.h.

◆ setPersistentState()

template<class T >

void ml::ListTemplate< T >::setPersistentState ( const std::string & state )

overridevirtual

Initialize the list object from the string state.

Reimplemented from ml::Base.

Definition at line 533 of file mlListBase.h.

References ml::ListParser::getErrorMessage(), ml::ListParser::init(), ML_EMPTY_MESSAGE, ML_PRINT_ERROR, ml::ListParser::nextItem(), and T.

Referenced by ml::BaseListTemplate< T >::setItemState().

The documentation for this class was generated from the following file:

MeVisLab/Standard/Sources/ML/MLBase/mlListBase.h

Public Types

Public Member Functions

List persistence

List item persistence

Additional Inherited Members

Detailed Description

template<class T> class ml::ListTemplate< T >

Member Typedef Documentation

◆ itemType

Constructor & Destructor Documentation

◆ ListTemplate() [1/3]

◆ ListTemplate() [2/3]

◆ ListTemplate() [3/3]

Member Function Documentation

◆ addStateToTree()

◆ clearList()

◆ clone()

◆ deepCopy()

◆ getSize()

◆ itemState()

◆ ML_SET_ADDSTATE_VERSION()

◆ operator=()

◆ persistentState()

◆ readStateFromTree()

◆ setItemState()

◆ setPersistentState()

template<class T>
class ml::ListTemplate< T >
