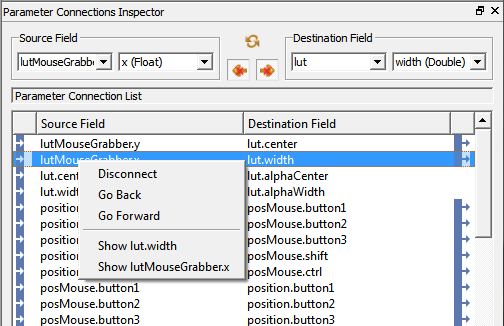

In the Parameter Connections Inspector, a context menu is available:
Options:
Disconnect: Disconnects the parameter connection.
Go Back (depending on connection): Selects the parameter connection in which the current source field is the destination field.
Go Forward (depending on connection): Selects the parameter connection in which the current destination field is the source field.
Show <field>: Highlights the associated module in the network. If other Views are open, like the Module Inspector or the Module List, also highlights the according field or module there.
For the context menu of parameter connections in the network, see Section 3.10.2.1, “Context Menu of Parameter Connections”.
