| Chapter 2. MeVisLab User Interface | ||
|---|---|---|
 |  | |
| Chapter 2. MeVisLab User Interface | ||
|---|---|---|
| | | |
Table of Contents
The layout of the MeVisLab graphical user interface (GUI) heavily depends on the arrangement preferred by the user. Own arrangements can be saved as the “User Default Layout”. In addition, pre-defined GUI layouts can be selected via View → Layout or in the bottom bar, see Chapter 6, Bottom Bar.

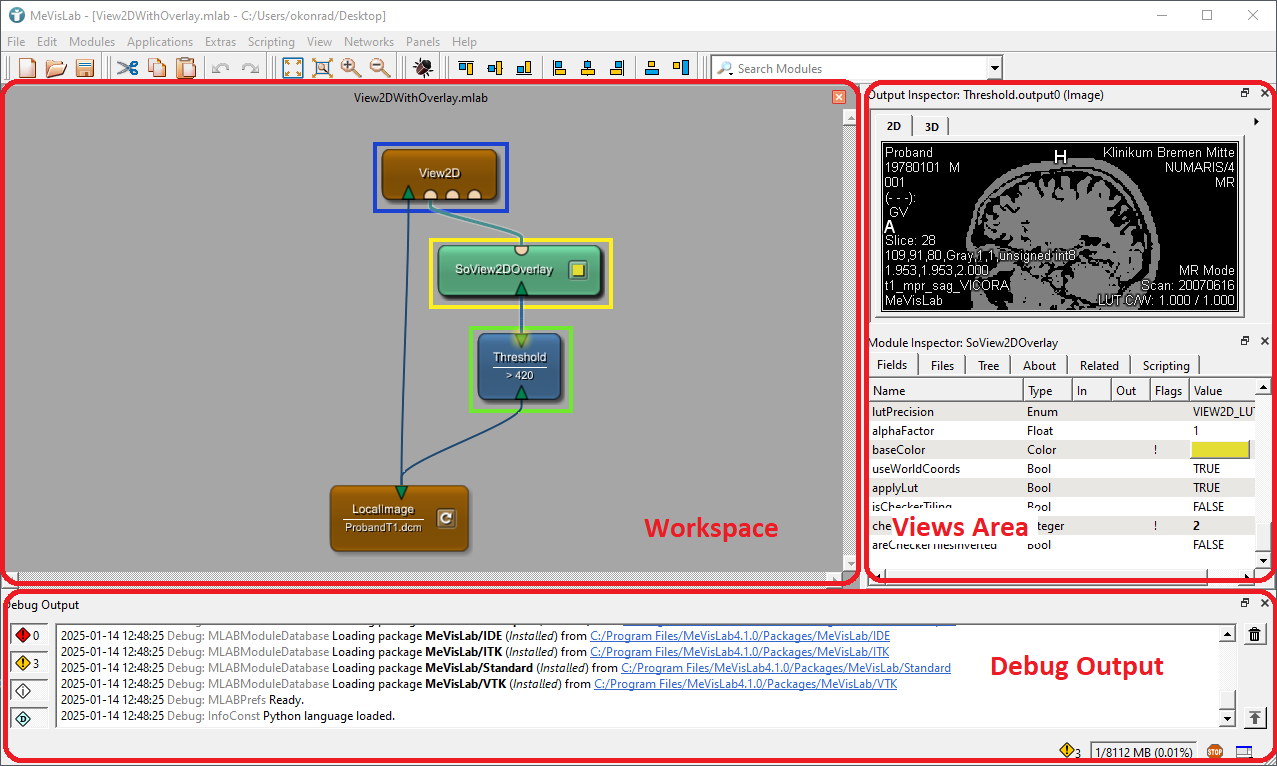

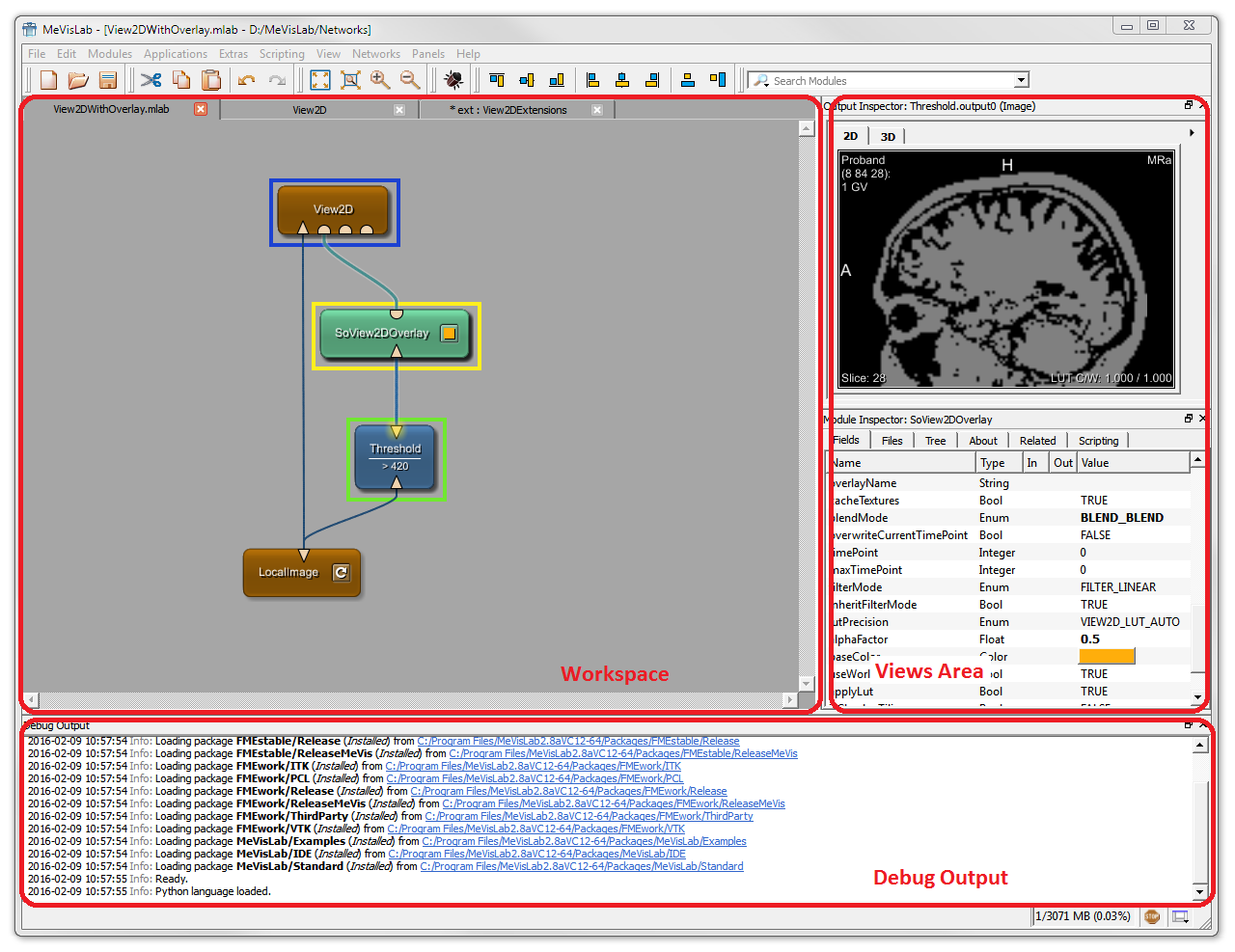

The user interface offers the following areas:
the menu bar with typical entries. See Chapter 4, Menu Bar.
the toolbar with buttons for Edit and Zoom functions. See Chapter 5, Toolbar.
the workspace with the network display, with tabs for all open networks. See Chapter 3, Modules and Networks.
the Views area, configurable in the View → Views submenu. See Section 4.9.8, “Views”.
the Debug Output (effectively a View), configurable in the View → Views submenu. See Chapter 8, Debug Output.
the bottom bar with information about the used memory space and quick access to layouts. See Chapter 6, Bottom Bar.
