DrawRectangle

MLModule

genre	Draw,Geometry
author	Lennart Tautz
package	FMEwork/ReleaseMeVis
dll	MLDrawRectangle
definition	MLDrawRectangle.def
see also	Draw3D
keywords	draw, rect, box, rectangle

Purpose

This module draws a rectangle into an image volume.

Usage

Select 6D start and end points of the rectangle (in voxel coordinates) and an appropriate fill value, and press Update.

Windows

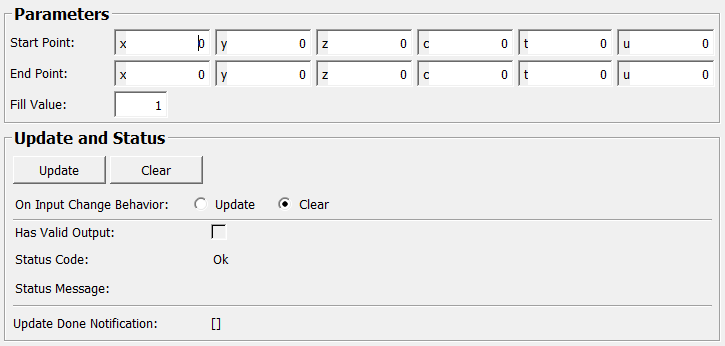

Default Panel

Input Fields

input0

name: input0, type: Image

Image to draw the rectangle on.

Output Fields

output0

name: output0, type: Image

Output image with rectangle.

Parameter Fields

Field Index

[]: Trigger	Status Code: Enum
Clear: Trigger	Status Message: String
doNotClearOnFailedUpdate: Bool	Update: Trigger
End Point: IntVector6
Fill Value: Integer
Has Valid Output: Bool
On Input Change Behavior: Enum
Start Point: IntVector6

Visible Fields

Update

name: update, type: Trigger

Update the result.

Clear

name: clear, type: Trigger

Clears all output field values to a clean initial state.

On Input Change Behavior

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically

Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE,True
Clear	Clear	FALSE,False

Status Code

name: statusCode, type: Enum, persistent: no

Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
Ok	Ok
Invalid input object	Invalid input object
Invalid input parameter	Invalid input parameter
Internal error	Internal error

Status Message

name: statusMessage, type: String, persistent: no

Gives additional, detailed information about status code as human-readable message.

Has Valid Output

name: hasValidOutput, type: Bool, persistent: no

Indicates validity of output field values (success of computation).

[]

name: updateDone, type: Trigger, persistent: no

Notifies that an update was performed (Check status interface fields to identify success or failure).

Start Point

name: inRectangleStart, type: IntVector6, default: 0 0 0 0 0 0, deprecated name: start

6D start point in voxel coordinates, as space-separated string. Missing components are set to zero.

End Point

name: inRectangleEnd, type: IntVector6, default: 0 0 0 0 0 0, deprecated name: end

6D end point in voxel coordinates, as space-separated string. Missing components are set to zero.

Fill Value

name: inFillValue, type: Integer, default: 1, deprecated name: fillValue

Fill value of the rectangle.

Hidden Fields

doNotClearOnFailedUpdate

name: doNotClearOnFailedUpdate, type: Bool, persistent: no

Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
