CreateRandomXMarkers¶

MacroModule¶

author	`Lennart Tautz`
package	`FMEwork/ReleaseMeVis`
definition	CreateRandomXMarkers.def
see also	`JitterXMarkerList`
keywords	`random`, `marker`, `position`, `list`, `pattern`, `test`, `example`

Purpose¶

This module creates a list of random XMarkers.

Usage¶

Set the number of desired markers, the jitter/randomness parameters, and press Update.

Details¶

All marker coordinates are internally generated as floating-point numbers, with C/T/U coordinates rounded to integers to be useful. The mean/sigma parameters for these dimensions have to be set accordingly.

Windows¶

Default Panel¶

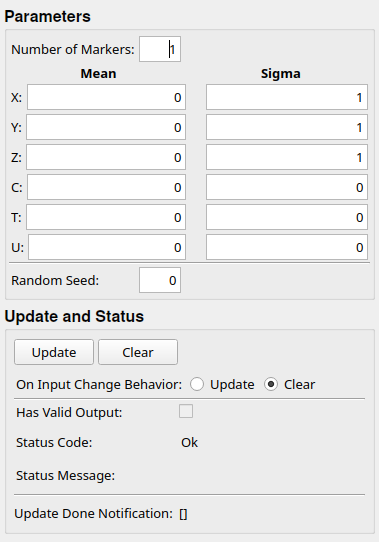

Images/Screenshots/CreateRandomXMarkers._default.png

Output Fields¶

outMarkerList¶

name: outMarkerList, type: MLBase¶: An XMarkerList with N randomly placed markers.

Parameter Fields¶

Field Index¶

`[]`: `Trigger`	`In XSigma`: `Float`	`T`: `Float`
`C`: `Float`	`In YSigma`: `Float`	`U`: `Float`
`Clear`: `Trigger`	`In ZSigma`: `Float`	`Update`: `Trigger`
`doNotClearOnFailedUpdate`: `Bool`	`Number of Markers`: `Integer`	`X`: `Float`
`Has Valid Output`: `Bool`	`On Input Change Behavior`: `Enum`	`Y`: `Float`
`In CSigma`: `Float`	`Random Seed`: `Integer`	`Z`: `Float`
`In TSigma`: `Float`	`Status Code`: `Enum`
`In USigma`: `Float`	`Status Message`: `String`

Visible Fields¶

Update¶

name: update, type: Trigger¶: Initiates update of all output field values.

Clear¶

name: clear, type: Trigger¶: Clears all output field values to a clean initial state.

On Input Change Behavior¶

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically¶: Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE
Clear	Clear	FALSE

[]¶

name: updateDone, type: Trigger, persistent: no¶: Notifies that an update was performed (Check status interface fields to identify success or failure).

Has Valid Output¶

name: hasValidOutput, type: Bool, persistent: no¶: Indicates validity of output field values (success of computation).

Status Code¶

name: statusCode, type: Enum, persistent: no¶: Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
Ok	Ok
Invalid input object	Invalid input object
Invalid input parameter	Invalid input parameter
Internal error	Internal error

Status Message¶

name: statusMessage, type: String, persistent: no¶: Gives additional, detailed information about status code as human-readable message.

Number of Markers¶

name: inNumberOfMarkers, type: Integer, default: 1, minimum: 1¶: The number of markers to create.

X¶

name: inXMean, type: Float, default: 0¶: Sets the mean value for jittering in X-direction.

Y¶

name: inYMean, type: Float, default: 0¶: Sets the mean value for jittering in Y-direction.

Z¶

name: inZMean, type: Float, default: 0¶: Sets the mean value for jittering in Z-direction.

C¶

name: inCMean, type: Float, default: 0¶: Sets the mean value for jittering in C-direction.

T¶

name: inTMean, type: Float, default: 0¶: Sets the mean value for jittering in T-direction.

U¶

name: inUMean, type: Float, default: 0¶: Sets the mean value for jittering in U-direction.

In XSigma¶

name: inXSigma, type: Float, default: 1¶: Sets the sigma value for jittering in X-direction.

In YSigma¶

name: inYSigma, type: Float, default: 1¶: Sets the sigma value for jittering in Y-direction.

In ZSigma¶

name: inZSigma, type: Float, default: 1¶: Sets the sigma value for jittering in Z-direction.

In CSigma¶

name: inCSigma, type: Float, default: 0¶: Sets the sigma value for jittering in C-direction.

In TSigma¶

name: inTSigma, type: Float, default: 0¶: Sets the sigma value for jittering in T-direction.

In USigma¶

name: inUSigma, type: Float, default: 0¶: Sets the sigma value for jittering in U-direction.

Random Seed¶

name: inRandomSeed, type: Integer, default: 0¶

Sets a random seed for the internal random generator.

If set to 0, a random seed will be determined from the current time.

Note that the precision is seconds so that the seed will only be different every new second. For values > 1, the random seed is fixed.

Hidden Fields¶

doNotClearOnFailedUpdate¶

name: doNotClearOnFailedUpdate, type: Bool, persistent: no¶: Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.
