CreateRTDose¶

MacroModule¶

author	`Grzegorz Chlebus`
package	`FMEwork/ReleaseMeVis`
definition	CreateRTIODs.def
see also	`RTDoseInfo`, `RTObjectSave`
keywords	`RT`, `DICOM`, `CSO`

Purpose¶

Create RT Dose IOD object using a CSOList (inCSOList), an RT Plan (inRTPlan), a CT image (inCTImage) , a dose image (inDoseImage) and a DICOM Tree (inDicomTree), from which tags like Patient Name, Patient Sex, Study Description are copied.

Usage¶

See example network.

Details¶

The following tags are set:

RT Series Module
- Modality (0008,0060) is set to RTDOSE.
- Series Number (0020,0011) is set to 1.
- Series Instance UID (0020,000e) is generated anew.
Structure Set Module:
- Structure Set Date (3006,0008) is set to current date.
- Structure Set Time (3006,0009) is set to current time.
SOP Common Module:
- SOP Class UID (0008,0016) is set to 1.2.840.10008.5.1.4.1.1.481.2.
- SOP Instance UID (0008,0018) is generated anew.
- Instance Creation Date (0008,0012) is set to current date.
- Instance Creation Time (0008,0013) is set to current time.
- Timezone Offset From UTC (0008,0201) is set automatically.

See help of DicomModifyMLToRTDosePlugin to see what else is set.

To see which tags are copied from the input DICOM Tree (inDicomTree), examine the CopyTags module in the macro’s internal network.

Windows¶

Default Panel¶

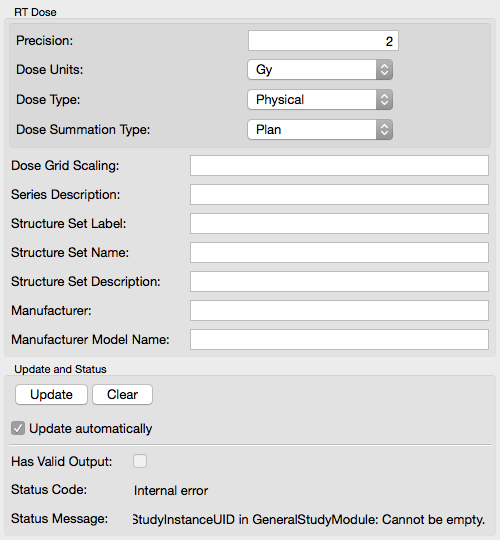

../../../Modules/Macros/CreateRTIODs/mhelp/Images/Screenshots/CreateRTDose._default.png

Input Fields¶

inCTImage¶

name: inCTImage, type: Image¶: Input CT image.

inDoseImage¶

name: inDoseImage, type: Image¶: Input dose image.

inCSOList¶

name: inCSOList, type: MLBase¶: Input CSO List.

inDicomTree¶

name: inDicomTree, type: MLBase¶: Input DICOM Tree.

inRTPlan¶

name: inRTPlan, type: MLBase¶: Input RT Plan.

Output Fields¶

outRTDose¶

name: outRTDose, type: MLBase¶

Parameter Fields¶

Visible Fields¶

Update¶

name: update, type: Trigger¶

Clear¶

name: clear, type: Trigger¶

Update Automatically¶

name: updateAutomatically, type: Bool, default: FALSE¶
