FibersToGraph

MLModule

genre	FiberTracking
author	Jan Klein
package	FMEwork/Release
dll	MLFiberUtils
definition	MLFiberUtils.def
keywords	DTI, tensor, fiber, graph, stream, tubes, streamtubes

Purpose

The module this converts a fiber set to a graph object so that other visualization methods can be used.

A fiber set can be visualized with SoFiberVis and a graph can be visualized with SoVascularSystem.

Windows

Default Panel

Input Fields

inputFiberSet

name: inputFiberSet, type: MLBase

Output Fields

outputGraph

name: outputGraph, type: MLBase

ml::Graph output

Parameter Fields

Visible Fields

Radius

name: minRadius, type: Float, default: 1

Sets the radius for the generated vessel nodes.

Optimize

name: optimize, type: Bool, default: TRUE

If checked, points from a fiber might be omitted in the generation that yield a angle of the adjacent edges.

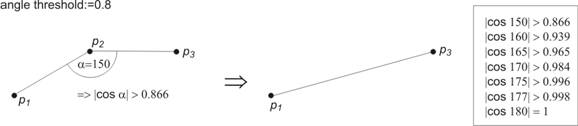

Angle Threshold

name: angleThreshold, type: Float, default: 0.99900001

Sets the angle threshold in radians for omitting low angular edges.
