FiberTreeInfo

MLModule
genre DTIVisualization
author Jan Klein
package FMEwork/Release
dll MLFiberTree
definition MLFiberTree.def
see also FiberTree, FiberTreeQuery, FiberFromIndex, IndexArithmetic2
keywords DTI, tensor, fiber, query, tree, info

Purpose

The module FiberTreeInfo displays information about a fiber tree which can be computed by the module FiberTree.

Windows

Default Panel

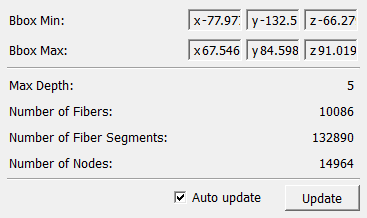

../../../Modules/ML/MLDiffusionMRI/MLFiberTree/mhelp/Images/Screenshots/FiberTreeInfo._default.png

Input Fields

inputFiberTree

name: inputFiberTree, type: MLBase

Object of type FiberOctree.

Parameter Fields

Field Index

Auto Update: Bool
Bbox Max: Vector3
Bbox Min: Vector3
Max Depth: Integer
Number of Fiber Segments: Integer
Number of Fibers: Integer
Number of Nodes: Integer
Update: Trigger

Visible Fields

Bbox Min

name: bboxMin, type: Vector3, persistent: no

Shows the minimum corner of the bounding box enclosing the fibers.

Bbox Max

name: bboxMax, type: Vector3, persistent: no

Shows the maximum corner of the bounding box enclosing the fibers.

Max Depth

name: maxDepth, type: Integer, persistent: no

Shows the maximum depth of the fibers' octree.

Number of Fibers

name: objectNumber, type: Integer, persistent: no

Shows the number of fibers in the fiber set.

Number of Fiber Segments

name: objectPartsNumber, type: Integer, persistent: no

Shows the number of fiber segments.

Number of Nodes

name: nodesNumber, type: Integer, persistent: no

Shows the number of nodes in the fiber set.

Auto Update

name: autoUpdate, type: Bool, default: TRUE

If checked, the module computes anew on any input change.

Update

name: update, type: Trigger

If pressed, the module computes anew.
