SetTileProcessorProperties¶

MLModule¶

genre	`ML_Inference_PatchBased_Properties`
author	`Jan-Martin Kuhnigk`
package	`FMEstable/ReleaseMeVis`
dll	`MLSetTileProcessorProperties`
definition	MLSetTileProcessorProperties.def
see also	`ApplyTileProcessorPageWise`
keywords	`SetProposedTileProperties`, `inference`, `TileProcessor`, `TileProperties`, `TileProcessorProperties`, `modify`, `change`, `set`, `overwrite`

Purpose¶

Can be used to create or modify (proposed) tile processor properties to be used e.g. by modules ProcessTiles and ApplyTileProcessorPageWise.

Usage¶

Connect your tile processor and/or properties to the input, or leave it open to create properties from scratch.
Open the panel and verify the “original” proposed properties
Check the ‘ORIGINAL/REMOVE/CUSTOM’ buttons to remove or overwrite the properties you don’t like. When choosing CUSTOM, enter the preferred values to their right.
Press update to apply the changes.

Details¶

Dimensions¶

As dimensions, use a comma-separated list describing the order in which the input data dimensions are expected by the processor, in ML order, i.e. smallest stride (X) first. On top of the data (typically spatial) dimensions provided to the processor, you can specify where the input channel and batch dimensions are located. Valid elemental values are X, Y, Z, C, T, U, as well as CHANNEL (or CHANNEL1), CHANNEL2, BATCH and UNUSED. UNUSED can be used for all dimensions not required by the processor (but it can also be omitted).

Typical examples are

X, Y, CHANNEL, BATCH

for 2D processors with a channel and batch dimension, or

X, Y, Z, CHANNEL, BATCH

for 3D processors with a channel and batch dimension.

Windows¶

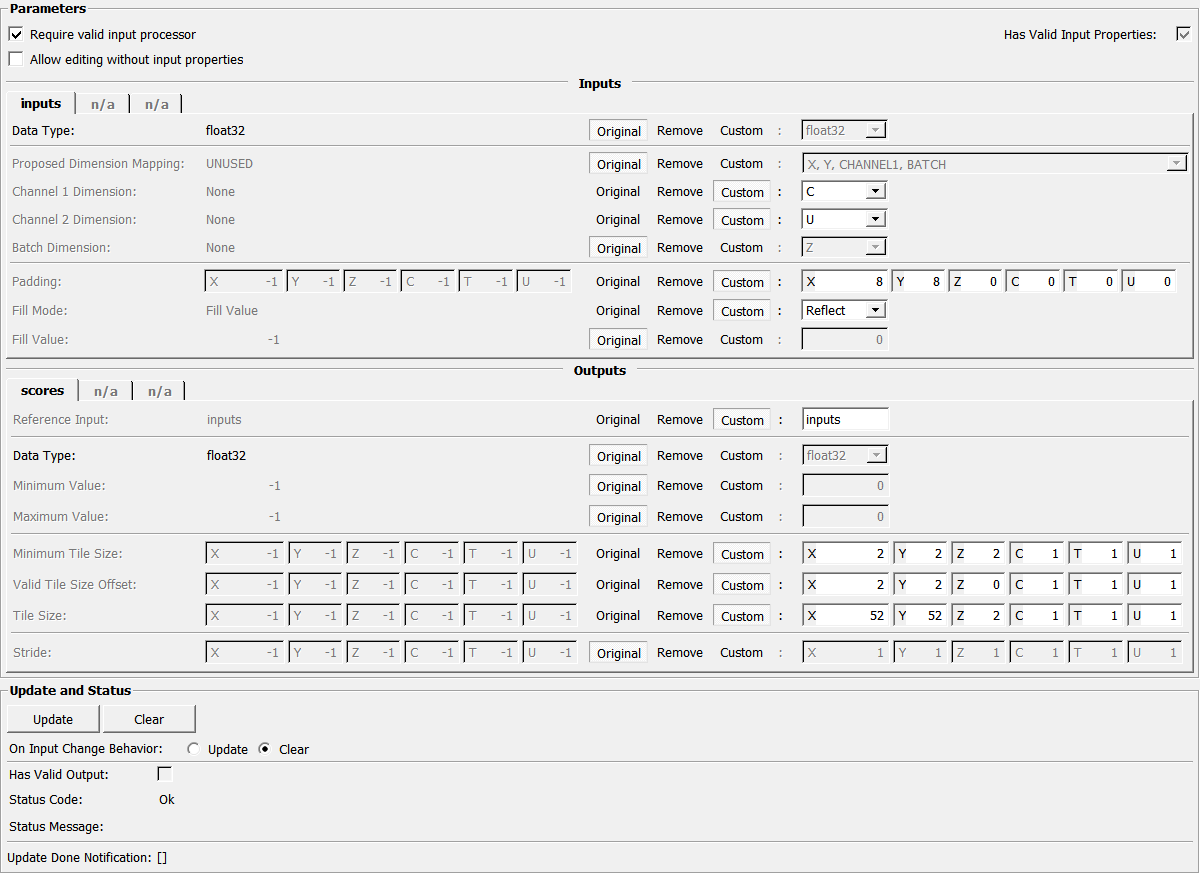

Default Panel¶

../../../Projects/TileProcessing/TileProcessorPropertiesUtils/MLSetTileProcessorProperties/Modules/mhelp/Images/Screenshots/SetTileProcessorProperties._default.png

Input Fields¶

inObject¶

name: inObject, type: TileProcessorPropertiesSource/TileProcessorContainer/TileProcessor(MLBase), deprecated name: inTileProcessor,inTileProperties¶: Optional input that may be Null or a TileProcessor, TileProcessorProperties(Source) or TileProcessorContainer object. You can require the input to contain a valid processor via Require valid input processor.

Output Fields¶

outObject¶

name: outObject, type: CppTileProcessorProperties/TileProcessorContainer(MLBase), deprecated name: outTileProcessor,outTileProperties¶

Output TileProcessor, TilePropertiesSource or TileProcessorContainer (BaseList).

This is what to expect:

Input: Null (empty) -> Output: CppTileProperties

Input: TilePropertiesSource -> Output: CppTileProperties

Input: TileProcessor -> Output: TileProcessorContainer (containing the unmodified input tile processor and the new tile properties)

Input: TileProcessorContainer -> Output: TileProcessorContainer (with the same content as the input TileProcessorContainer, except for the modified/new tile properties)

Make sure to set Require valid input processor accordingly or you will wind up with an invalid output for some of these constellations.

Parameter Fields¶

Field Index¶

`[]`: `Trigger`	`inHandle_input_fillMode_2`: `Enum`	`outHasOriginal_output_tileSize_0`: `Bool`
`Allow editing without input properties`: `Bool`	`inHandle_input_fillValue_0`: `Enum`	`outHasOriginal_output_tileSize_1`: `Bool`
`Clear`: `Trigger`	`inHandle_input_fillValue_1`: `Enum`	`outHasOriginal_output_tileSize_2`: `Bool`
`doNotClearOnFailedUpdate`: `Bool`	`inHandle_input_fillValue_2`: `Enum`	`outHasOriginal_output_tileSizeMinimum_0`: `Bool`
`Has Valid Input Properties`: `Bool`	`inHandle_input_padding_0`: `Enum`	`outHasOriginal_output_tileSizeMinimum_1`: `Bool`
`Has Valid Output`: `Bool`	`inHandle_input_padding_1`: `Enum`	`outHasOriginal_output_tileSizeMinimum_2`: `Bool`
`inCustom_input_dataType_0`: `Enum`	`inHandle_input_padding_2`: `Enum`	`outHasOriginal_output_tileSizeOffset_0`: `Bool`
`inCustom_input_dataType_1`: `Enum`	`inHandle_output_dataType_0`: `Enum`	`outHasOriginal_output_tileSizeOffset_1`: `Bool`
`inCustom_input_dataType_2`: `Enum`	`inHandle_output_dataType_1`: `Enum`	`outHasOriginal_output_tileSizeOffset_2`: `Bool`
`inCustom_input_dimensions_0`: `String`	`inHandle_output_dataType_2`: `Enum`	`outHasOriginal_output_valueMaximum_0`: `Bool`
`inCustom_input_dimensions_1`: `String`	`inHandle_output_referenceInput_0`: `Enum`	`outHasOriginal_output_valueMaximum_1`: `Bool`
`inCustom_input_dimensions_2`: `String`	`inHandle_output_referenceInput_1`: `Enum`	`outHasOriginal_output_valueMaximum_2`: `Bool`
`inCustom_input_externalDimensionForBatch_0`: `Enum`	`inHandle_output_referenceInput_2`: `Enum`	`outHasOriginal_output_valueMinimum_0`: `Bool`
`inCustom_input_externalDimensionForBatch_1`: `Enum`	`inHandle_output_stride_0`: `Enum`	`outHasOriginal_output_valueMinimum_1`: `Bool`
`inCustom_input_externalDimensionForBatch_2`: `Enum`	`inHandle_output_stride_1`: `Enum`	`outHasOriginal_output_valueMinimum_2`: `Bool`
`inCustom_input_externalDimensionForChannel1_0`: `Enum`	`inHandle_output_stride_2`: `Enum`	`outOriginal_input_dataType_0`: `Enum`
`inCustom_input_externalDimensionForChannel1_1`: `Enum`	`inHandle_output_tileSize_0`: `Enum`	`outOriginal_input_dataType_1`: `Enum`
`inCustom_input_externalDimensionForChannel1_2`: `Enum`	`inHandle_output_tileSize_1`: `Enum`	`outOriginal_input_dataType_2`: `Enum`
`inCustom_input_externalDimensionForChannel2_0`: `Enum`	`inHandle_output_tileSize_2`: `Enum`	`outOriginal_input_dimensions_0`: `String`
`inCustom_input_externalDimensionForChannel2_1`: `Enum`	`inHandle_output_tileSizeMinimum_0`: `Enum`	`outOriginal_input_dimensions_1`: `String`
`inCustom_input_externalDimensionForChannel2_2`: `Enum`	`inHandle_output_tileSizeMinimum_1`: `Enum`	`outOriginal_input_dimensions_2`: `String`
`inCustom_input_fillMode_0`: `Enum`	`inHandle_output_tileSizeMinimum_2`: `Enum`	`outOriginal_input_externalDimensionForBatch_0`: `Enum`
`inCustom_input_fillMode_1`: `Enum`	`inHandle_output_tileSizeOffset_0`: `Enum`	`outOriginal_input_externalDimensionForBatch_1`: `Enum`
`inCustom_input_fillMode_2`: `Enum`	`inHandle_output_tileSizeOffset_1`: `Enum`	`outOriginal_input_externalDimensionForBatch_2`: `Enum`
`inCustom_input_fillValue_0`: `Double`	`inHandle_output_tileSizeOffset_2`: `Enum`	`outOriginal_input_externalDimensionForChannel1_0`: `Enum`
`inCustom_input_fillValue_1`: `Double`	`inHandle_output_valueMaximum_0`: `Enum`	`outOriginal_input_externalDimensionForChannel1_1`: `Enum`
`inCustom_input_fillValue_2`: `Double`	`inHandle_output_valueMaximum_1`: `Enum`	`outOriginal_input_externalDimensionForChannel1_2`: `Enum`
`inCustom_input_padding_0`: `IntVector6`	`inHandle_output_valueMaximum_2`: `Enum`	`outOriginal_input_externalDimensionForChannel2_0`: `Enum`
`inCustom_input_padding_1`: `IntVector6`	`inHandle_output_valueMinimum_0`: `Enum`	`outOriginal_input_externalDimensionForChannel2_1`: `Enum`
`inCustom_input_padding_2`: `IntVector6`	`inHandle_output_valueMinimum_1`: `Enum`	`outOriginal_input_externalDimensionForChannel2_2`: `Enum`
`inCustom_output_dataType_0`: `Enum`	`inHandle_output_valueMinimum_2`: `Enum`	`outOriginal_input_fillMode_0`: `Enum`
`inCustom_output_dataType_1`: `Enum`	`On Input Change Behavior`: `Enum`	`outOriginal_input_fillMode_1`: `Enum`
`inCustom_output_dataType_2`: `Enum`	`out_input_name_0`: `String`	`outOriginal_input_fillMode_2`: `Enum`
`inCustom_output_referenceInput_0`: `String`	`out_input_name_1`: `String`	`outOriginal_input_fillValue_0`: `Double`
`inCustom_output_referenceInput_1`: `String`	`out_input_name_2`: `String`	`outOriginal_input_fillValue_1`: `Double`
`inCustom_output_referenceInput_2`: `String`	`out_output_name_0`: `String`	`outOriginal_input_fillValue_2`: `Double`
`inCustom_output_stride_0`: `Vector6`	`out_output_name_1`: `String`	`outOriginal_input_padding_0`: `IntVector6`
`inCustom_output_stride_1`: `Vector6`	`out_output_name_2`: `String`	`outOriginal_input_padding_1`: `IntVector6`
`inCustom_output_stride_2`: `Vector6`	`outHasOriginal_input_dataType_0`: `Bool`	`outOriginal_input_padding_2`: `IntVector6`
`inCustom_output_tileSize_0`: `IntVector6`	`outHasOriginal_input_dataType_1`: `Bool`	`outOriginal_output_dataType_0`: `Enum`
`inCustom_output_tileSize_1`: `IntVector6`	`outHasOriginal_input_dataType_2`: `Bool`	`outOriginal_output_dataType_1`: `Enum`
`inCustom_output_tileSize_2`: `IntVector6`	`outHasOriginal_input_dimensions_0`: `Bool`	`outOriginal_output_dataType_2`: `Enum`
`inCustom_output_tileSizeMinimum_0`: `IntVector6`	`outHasOriginal_input_dimensions_1`: `Bool`	`outOriginal_output_referenceInput_0`: `String`
`inCustom_output_tileSizeMinimum_1`: `IntVector6`	`outHasOriginal_input_dimensions_2`: `Bool`	`outOriginal_output_referenceInput_1`: `String`
`inCustom_output_tileSizeMinimum_2`: `IntVector6`	`outHasOriginal_input_externalDimensionForBatch_0`: `Bool`	`outOriginal_output_referenceInput_2`: `String`
`inCustom_output_tileSizeOffset_0`: `IntVector6`	`outHasOriginal_input_externalDimensionForBatch_1`: `Bool`	`outOriginal_output_stride_0`: `Vector6`
`inCustom_output_tileSizeOffset_1`: `IntVector6`	`outHasOriginal_input_externalDimensionForBatch_2`: `Bool`	`outOriginal_output_stride_1`: `Vector6`
`inCustom_output_tileSizeOffset_2`: `IntVector6`	`outHasOriginal_input_externalDimensionForChannel1_0`: `Bool`	`outOriginal_output_stride_2`: `Vector6`
`inCustom_output_valueMaximum_0`: `Double`	`outHasOriginal_input_externalDimensionForChannel1_1`: `Bool`	`outOriginal_output_tileSize_0`: `IntVector6`
`inCustom_output_valueMaximum_1`: `Double`	`outHasOriginal_input_externalDimensionForChannel1_2`: `Bool`	`outOriginal_output_tileSize_1`: `IntVector6`
`inCustom_output_valueMaximum_2`: `Double`	`outHasOriginal_input_externalDimensionForChannel2_0`: `Bool`	`outOriginal_output_tileSize_2`: `IntVector6`
`inCustom_output_valueMinimum_0`: `Double`	`outHasOriginal_input_externalDimensionForChannel2_1`: `Bool`	`outOriginal_output_tileSizeMinimum_0`: `IntVector6`
`inCustom_output_valueMinimum_1`: `Double`	`outHasOriginal_input_externalDimensionForChannel2_2`: `Bool`	`outOriginal_output_tileSizeMinimum_1`: `IntVector6`
`inCustom_output_valueMinimum_2`: `Double`	`outHasOriginal_input_fillMode_0`: `Bool`	`outOriginal_output_tileSizeMinimum_2`: `IntVector6`
`inHandle_input_dataType_0`: `Enum`	`outHasOriginal_input_fillMode_1`: `Bool`	`outOriginal_output_tileSizeOffset_0`: `IntVector6`
`inHandle_input_dataType_1`: `Enum`	`outHasOriginal_input_fillMode_2`: `Bool`	`outOriginal_output_tileSizeOffset_1`: `IntVector6`
`inHandle_input_dataType_2`: `Enum`	`outHasOriginal_input_fillValue_0`: `Bool`	`outOriginal_output_tileSizeOffset_2`: `IntVector6`
`inHandle_input_dimensions_0`: `Enum`	`outHasOriginal_input_fillValue_1`: `Bool`	`outOriginal_output_valueMaximum_0`: `Double`
`inHandle_input_dimensions_1`: `Enum`	`outHasOriginal_input_fillValue_2`: `Bool`	`outOriginal_output_valueMaximum_1`: `Double`
`inHandle_input_dimensions_2`: `Enum`	`outHasOriginal_input_padding_0`: `Bool`	`outOriginal_output_valueMaximum_2`: `Double`
`inHandle_input_externalDimensionForBatch_0`: `Enum`	`outHasOriginal_input_padding_1`: `Bool`	`outOriginal_output_valueMinimum_0`: `Double`
`inHandle_input_externalDimensionForBatch_1`: `Enum`	`outHasOriginal_input_padding_2`: `Bool`	`outOriginal_output_valueMinimum_1`: `Double`
`inHandle_input_externalDimensionForBatch_2`: `Enum`	`outHasOriginal_output_dataType_0`: `Bool`	`outOriginal_output_valueMinimum_2`: `Double`
`inHandle_input_externalDimensionForChannel1_0`: `Enum`	`outHasOriginal_output_dataType_1`: `Bool`	`outUsed_input_dimensions_0`: `String`
`inHandle_input_externalDimensionForChannel1_1`: `Enum`	`outHasOriginal_output_dataType_2`: `Bool`	`outUsed_input_dimensions_1`: `String`
`inHandle_input_externalDimensionForChannel1_2`: `Enum`	`outHasOriginal_output_referenceInput_0`: `Bool`	`outUsed_input_dimensions_2`: `String`
`inHandle_input_externalDimensionForChannel2_0`: `Enum`	`outHasOriginal_output_referenceInput_1`: `Bool`	`Require valid input processor`: `Bool`
`inHandle_input_externalDimensionForChannel2_1`: `Enum`	`outHasOriginal_output_referenceInput_2`: `Bool`	`Status Code`: `Enum`
`inHandle_input_externalDimensionForChannel2_2`: `Enum`	`outHasOriginal_output_stride_0`: `Bool`	`Status Message`: `String`
`inHandle_input_fillMode_0`: `Enum`	`outHasOriginal_output_stride_1`: `Bool`	`Update`: `Trigger`
`inHandle_input_fillMode_1`: `Enum`	`outHasOriginal_output_stride_2`: `Bool`

Visible Fields¶

Update¶

name: update, type: Trigger¶: Initiates update of all output field values.

Clear¶

name: clear, type: Trigger¶: Clears all output field values to a clean initial state.

On Input Change Behavior¶

name: onInputChangeBehavior, type: Enum, default: Clear, deprecated name: shouldAutoUpdate,shouldUpdateAutomatically¶: Declares how the module should react if a value of an input field changes.

Values:

Title	Name	Deprecated Name
Update	Update	TRUE
Clear	Clear	FALSE

Status Code¶

name: statusCode, type: Enum, persistent: no¶: Reflects module’s status (successful or failed computations) as one of some predefined enumeration values.

Values:

Title	Name
Ok	Ok
Invalid input object	Invalid input object
Invalid input parameter	Invalid input parameter
Internal error	Internal error

Status Message¶

name: statusMessage, type: String, persistent: no¶: Gives additional, detailed information about status code as human-readable message.

Has Valid Output¶

name: hasValidOutput, type: Bool, persistent: no¶: Indicates validity of output field values (success of computation).

[]¶

name: updateDone, type: Trigger, persistent: no¶: Notifies that an update was performed (Check status interface fields to identify success or failure).

Require valid input processor¶

name: inRequireValidProcessor, type: Bool, default: TRUE, deprecated name: inRequireValidTileClassifier,inRequireValidTileProcessor¶: If enabled, the module will refuse to update if no valid input processor is connected. Enable this if you are sure the input should be/contain a processor to detect errors early.

Has Valid Input Properties¶

name: outHasValidInputProperties, type: Bool, persistent: no, deprecated name: outHasValidInputTileProcessorProperties,outHasValidInputTileProperties¶: Indicates if valid input properties object was detected. This also indicates whether the ‘proposed’ parameters come from a valid input properties object, or are just the default values.

Allow editing without input properties¶

name: inEnableEditingWithoutInputProperties, type: Bool, default: FALSE¶: Allows to edit ‘custom value’ fields even without valid input. Helpful for setup purposes.

Hidden Fields¶

doNotClearOnFailedUpdate¶

name: doNotClearOnFailedUpdate, type: Bool, persistent: no¶: Prevents automated clear after update failed. This does not affect status fields. It enables the developer to analyze module’s state after failure.

inHandle_input_dataType_0¶

name: inHandle_input_dataType_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_dataType_0¶

name: inCustom_input_dataType_0, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_input_dataType_0¶

name: outHasOriginal_input_dataType_0, type: Bool, persistent: no¶

outOriginal_input_dataType_0¶

name: outOriginal_input_dataType_0, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_input_dataType_1¶

name: inHandle_input_dataType_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_dataType_1¶

name: inCustom_input_dataType_1, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_input_dataType_1¶

name: outHasOriginal_input_dataType_1, type: Bool, persistent: no¶

outOriginal_input_dataType_1¶

name: outOriginal_input_dataType_1, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_input_dataType_2¶

name: inHandle_input_dataType_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_dataType_2¶

name: inCustom_input_dataType_2, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_input_dataType_2¶

name: outHasOriginal_input_dataType_2, type: Bool, persistent: no¶

outOriginal_input_dataType_2¶

name: outOriginal_input_dataType_2, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_input_padding_0¶

name: inHandle_input_padding_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomPadding¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_padding_0¶

name: inCustom_input_padding_0, type: IntVector6, default: 0 0 0 0 0 0, deprecated name: inCustomPadding¶

outHasOriginal_input_padding_0¶

name: outHasOriginal_input_padding_0, type: Bool, persistent: no¶

outOriginal_input_padding_0¶

name: outOriginal_input_padding_0, type: IntVector6, persistent: no, deprecated name: outOriginalPadding¶

inHandle_input_padding_1¶

name: inHandle_input_padding_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_padding_1¶

name: inCustom_input_padding_1, type: IntVector6, default: 0 0 0 0 0 0¶

outHasOriginal_input_padding_1¶

name: outHasOriginal_input_padding_1, type: Bool, persistent: no¶

outOriginal_input_padding_1¶

name: outOriginal_input_padding_1, type: IntVector6, persistent: no¶

inHandle_input_padding_2¶

name: inHandle_input_padding_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_padding_2¶

name: inCustom_input_padding_2, type: IntVector6, default: 0 0 0 0 0 0¶

outHasOriginal_input_padding_2¶

name: outHasOriginal_input_padding_2, type: Bool, persistent: no¶

outOriginal_input_padding_2¶

name: outOriginal_input_padding_2, type: IntVector6, persistent: no¶

inHandle_input_fillMode_0¶

name: inHandle_input_fillMode_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomFillMode¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_fillMode_0¶

name: inCustom_input_fillMode_0, type: Enum, default: Reflect, deprecated name: inCustomFillMode¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

outHasOriginal_input_fillMode_0¶

name: outHasOriginal_input_fillMode_0, type: Bool, persistent: no¶

outOriginal_input_fillMode_0¶

name: outOriginal_input_fillMode_0, type: Enum, persistent: no, deprecated name: outOriginalFillMode¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

inHandle_input_fillMode_1¶

name: inHandle_input_fillMode_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_fillMode_1¶

name: inCustom_input_fillMode_1, type: Enum, default: Reflect¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

outHasOriginal_input_fillMode_1¶

name: outHasOriginal_input_fillMode_1, type: Bool, persistent: no¶

outOriginal_input_fillMode_1¶

name: outOriginal_input_fillMode_1, type: Enum, persistent: no¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

inHandle_input_fillMode_2¶

name: inHandle_input_fillMode_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_fillMode_2¶

name: inCustom_input_fillMode_2, type: Enum, default: Reflect¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

outHasOriginal_input_fillMode_2¶

name: outHasOriginal_input_fillMode_2, type: Bool, persistent: no¶

outOriginal_input_fillMode_2¶

name: outOriginal_input_fillMode_2, type: Enum, persistent: no¶

Values:

Title	Name
Fill Value	FillValue
Reflect	Reflect

inHandle_input_fillValue_0¶

name: inHandle_input_fillValue_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomFillValue¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_fillValue_0¶

name: inCustom_input_fillValue_0, type: Double, default: 0, deprecated name: inCustomFillValue¶

outHasOriginal_input_fillValue_0¶

name: outHasOriginal_input_fillValue_0, type: Bool, persistent: no¶

outOriginal_input_fillValue_0¶

name: outOriginal_input_fillValue_0, type: Double, persistent: no, deprecated name: outOriginalFillValue¶

inHandle_input_fillValue_1¶

name: inHandle_input_fillValue_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_fillValue_1¶

name: inCustom_input_fillValue_1, type: Double, default: 0¶

outHasOriginal_input_fillValue_1¶

name: outHasOriginal_input_fillValue_1, type: Bool, persistent: no¶

outOriginal_input_fillValue_1¶

name: outOriginal_input_fillValue_1, type: Double, persistent: no¶

inHandle_input_fillValue_2¶

name: inHandle_input_fillValue_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_fillValue_2¶

name: inCustom_input_fillValue_2, type: Double, default: 0¶

outHasOriginal_input_fillValue_2¶

name: outHasOriginal_input_fillValue_2, type: Bool, persistent: no¶

outOriginal_input_fillValue_2¶

name: outOriginal_input_fillValue_2, type: Double, persistent: no¶

inHandle_input_dimensions_0¶

name: inHandle_input_dimensions_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomExternalToClassifierDimensionMapping,inUseCustomExternalToProcessorDimensionMapping¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_dimensions_0¶

name: inCustom_input_dimensions_0, type: String, default: X, Y, CHANNEL1, BATCH, deprecated name: inCustomExternalToProcessorDimensionMapping,inCustomExternalTToClassifierDimensionMapping¶

outHasOriginal_input_dimensions_0¶

name: outHasOriginal_input_dimensions_0, type: Bool, persistent: no¶

outOriginal_input_dimensions_0¶

name: outOriginal_input_dimensions_0, type: String, persistent: no, deprecated name: outOriginalExternalToClassifierDimensionMapping,outOriginalExternalToProcessorDimensionMapping¶

inHandle_input_dimensions_1¶

name: inHandle_input_dimensions_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_dimensions_1¶

name: inCustom_input_dimensions_1, type: String, default: X, Y, CHANNEL1, BATCH¶

outHasOriginal_input_dimensions_1¶

name: outHasOriginal_input_dimensions_1, type: Bool, persistent: no¶

outOriginal_input_dimensions_1¶

name: outOriginal_input_dimensions_1, type: String, persistent: no¶

inHandle_input_dimensions_2¶

name: inHandle_input_dimensions_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_dimensions_2¶

name: inCustom_input_dimensions_2, type: String, default: X, Y, CHANNEL1, BATCH¶

outHasOriginal_input_dimensions_2¶

name: outHasOriginal_input_dimensions_2, type: Bool, persistent: no¶

outOriginal_input_dimensions_2¶

name: outOriginal_input_dimensions_2, type: String, persistent: no¶

inHandle_input_externalDimensionForChannel1_0¶

name: inHandle_input_externalDimensionForChannel1_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomExternalDimensionForChannel1¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_externalDimensionForChannel1_0¶

name: inCustom_input_externalDimensionForChannel1_0, type: Enum, default: C, deprecated name: inCustomExternalDimensionForChannel1¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel1_0¶

name: outHasOriginal_input_externalDimensionForChannel1_0, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel1_0¶

name: outOriginal_input_externalDimensionForChannel1_0, type: Enum, persistent: no, deprecated name: outOriginalExternalDimensionForChannel1¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U
None	NONE

inHandle_input_externalDimensionForChannel1_1¶

name: inHandle_input_externalDimensionForChannel1_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForChannel1_1¶

name: inCustom_input_externalDimensionForChannel1_1, type: Enum, default: C¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel1_1¶

name: outHasOriginal_input_externalDimensionForChannel1_1, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel1_1¶

name: outOriginal_input_externalDimensionForChannel1_1, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForChannel1_2¶

name: inHandle_input_externalDimensionForChannel1_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForChannel1_2¶

name: inCustom_input_externalDimensionForChannel1_2, type: Enum, default: C¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel1_2¶

name: outHasOriginal_input_externalDimensionForChannel1_2, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel1_2¶

name: outOriginal_input_externalDimensionForChannel1_2, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForChannel2_0¶

name: inHandle_input_externalDimensionForChannel2_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomExternalDimensionForChannel2¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_input_externalDimensionForChannel2_0¶

name: inCustom_input_externalDimensionForChannel2_0, type: Enum, default: U, deprecated name: inCustomExternalDimensionForChannel2¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel2_0¶

name: outHasOriginal_input_externalDimensionForChannel2_0, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel2_0¶

name: outOriginal_input_externalDimensionForChannel2_0, type: Enum, persistent: no, deprecated name: outOriginalExternalDimensionForChannel2¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U
None	NONE

inHandle_input_externalDimensionForChannel2_1¶

name: inHandle_input_externalDimensionForChannel2_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForChannel2_1¶

name: inCustom_input_externalDimensionForChannel2_1, type: Enum, default: U¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel2_1¶

name: outHasOriginal_input_externalDimensionForChannel2_1, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel2_1¶

name: outOriginal_input_externalDimensionForChannel2_1, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForChannel2_2¶

name: inHandle_input_externalDimensionForChannel2_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForChannel2_2¶

name: inCustom_input_externalDimensionForChannel2_2, type: Enum, default: U¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForChannel2_2¶

name: outHasOriginal_input_externalDimensionForChannel2_2, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForChannel2_2¶

name: outOriginal_input_externalDimensionForChannel2_2, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForBatch_0¶

name: inHandle_input_externalDimensionForBatch_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForBatch_0¶

name: inCustom_input_externalDimensionForBatch_0, type: Enum, default: Z¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForBatch_0¶

name: outHasOriginal_input_externalDimensionForBatch_0, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForBatch_0¶

name: outOriginal_input_externalDimensionForBatch_0, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForBatch_1¶

name: inHandle_input_externalDimensionForBatch_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForBatch_1¶

name: inCustom_input_externalDimensionForBatch_1, type: Enum, default: Z¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForBatch_1¶

name: outHasOriginal_input_externalDimensionForBatch_1, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForBatch_1¶

name: outOriginal_input_externalDimensionForBatch_1, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_input_externalDimensionForBatch_2¶

name: inHandle_input_externalDimensionForBatch_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_input_externalDimensionForBatch_2¶

name: inCustom_input_externalDimensionForBatch_2, type: Enum, default: Z¶

Values:

Title	Name
X	X
Y	Y
Z	Z
C	C
T	T
U	U

outHasOriginal_input_externalDimensionForBatch_2¶

name: outHasOriginal_input_externalDimensionForBatch_2, type: Bool, persistent: no¶

outOriginal_input_externalDimensionForBatch_2¶

name: outOriginal_input_externalDimensionForBatch_2, type: Enum, persistent: no¶

Values:

Title	Name
None	NONE
X	X
Y	Y
Z	Z
C	C
T	T
U	U

inHandle_output_dataType_0¶

name: inHandle_output_dataType_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_dataType_0¶

name: inCustom_output_dataType_0, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_output_dataType_0¶

name: outHasOriginal_output_dataType_0, type: Bool, persistent: no¶

outOriginal_output_dataType_0¶

name: outOriginal_output_dataType_0, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_output_dataType_1¶

name: inHandle_output_dataType_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_dataType_1¶

name: inCustom_output_dataType_1, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_output_dataType_1¶

name: outHasOriginal_output_dataType_1, type: Bool, persistent: no¶

outOriginal_output_dataType_1¶

name: outOriginal_output_dataType_1, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_output_dataType_2¶

name: inHandle_output_dataType_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_dataType_2¶

name: inCustom_output_dataType_2, type: Enum, default: float32¶

Values:

Title	Name
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

outHasOriginal_output_dataType_2¶

name: outHasOriginal_output_dataType_2, type: Bool, persistent: no¶

outOriginal_output_dataType_2¶

name: outOriginal_output_dataType_2, type: Enum, persistent: no¶

Values:

Title	Name
Invalid	INVALID
int8	int8
uint8	uint8
int16	int16
uint16	uint16
int32	int32
uint32	uint32
float32	float32
float64	float64
int64	int64
uint64	uint64

inHandle_output_referenceInput_0¶

name: inHandle_output_referenceInput_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_referenceInput_0¶

name: inCustom_output_referenceInput_0, type: String, default: input0¶

outHasOriginal_output_referenceInput_0¶

name: outHasOriginal_output_referenceInput_0, type: Bool, persistent: no¶

outOriginal_output_referenceInput_0¶

name: outOriginal_output_referenceInput_0, type: String, persistent: no¶

inHandle_output_referenceInput_1¶

name: inHandle_output_referenceInput_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_referenceInput_1¶

name: inCustom_output_referenceInput_1, type: String, default: input0¶

outHasOriginal_output_referenceInput_1¶

name: outHasOriginal_output_referenceInput_1, type: Bool, persistent: no¶

outOriginal_output_referenceInput_1¶

name: outOriginal_output_referenceInput_1, type: String, persistent: no¶

inHandle_output_referenceInput_2¶

name: inHandle_output_referenceInput_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_referenceInput_2¶

name: inCustom_output_referenceInput_2, type: String, default: input0¶

outHasOriginal_output_referenceInput_2¶

name: outHasOriginal_output_referenceInput_2, type: Bool, persistent: no¶

outOriginal_output_referenceInput_2¶

name: outOriginal_output_referenceInput_2, type: String, persistent: no¶

inHandle_output_tileSize_0¶

name: inHandle_output_tileSize_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomOutputTileSize¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_output_tileSize_0¶

name: inCustom_output_tileSize_0, type: IntVector6, default: 1 1 1 1 1 1, deprecated name: inCustomOutputTileSize¶

outHasOriginal_output_tileSize_0¶

name: outHasOriginal_output_tileSize_0, type: Bool, persistent: no¶

outOriginal_output_tileSize_0¶

name: outOriginal_output_tileSize_0, type: IntVector6, persistent: no, deprecated name: outOriginalOutputTileSize¶

inHandle_output_tileSize_1¶

name: inHandle_output_tileSize_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSize_1¶

name: inCustom_output_tileSize_1, type: IntVector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_tileSize_1¶

name: outHasOriginal_output_tileSize_1, type: Bool, persistent: no¶

outOriginal_output_tileSize_1¶

name: outOriginal_output_tileSize_1, type: IntVector6, persistent: no¶

inHandle_output_tileSize_2¶

name: inHandle_output_tileSize_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSize_2¶

name: inCustom_output_tileSize_2, type: IntVector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_tileSize_2¶

name: outHasOriginal_output_tileSize_2, type: Bool, persistent: no¶

outOriginal_output_tileSize_2¶

name: outOriginal_output_tileSize_2, type: IntVector6, persistent: no¶

inHandle_output_tileSizeMinimum_0¶

name: inHandle_output_tileSizeMinimum_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomMinimumOutputTileSize¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_output_tileSizeMinimum_0¶

name: inCustom_output_tileSizeMinimum_0, type: IntVector6, default: 1 1 1 1 1 1, deprecated name: inCustomMinimumOutputTileSize¶

outHasOriginal_output_tileSizeMinimum_0¶

name: outHasOriginal_output_tileSizeMinimum_0, type: Bool, persistent: no¶

outOriginal_output_tileSizeMinimum_0¶

name: outOriginal_output_tileSizeMinimum_0, type: IntVector6, persistent: no, deprecated name: outOriginalMinimumOutputTileSize¶

inHandle_output_tileSizeMinimum_1¶

name: inHandle_output_tileSizeMinimum_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSizeMinimum_1¶

name: inCustom_output_tileSizeMinimum_1, type: IntVector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_tileSizeMinimum_1¶

name: outHasOriginal_output_tileSizeMinimum_1, type: Bool, persistent: no¶

outOriginal_output_tileSizeMinimum_1¶

name: outOriginal_output_tileSizeMinimum_1, type: IntVector6, persistent: no¶

inHandle_output_tileSizeMinimum_2¶

name: inHandle_output_tileSizeMinimum_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSizeMinimum_2¶

name: inCustom_output_tileSizeMinimum_2, type: IntVector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_tileSizeMinimum_2¶

name: outHasOriginal_output_tileSizeMinimum_2, type: Bool, persistent: no¶

outOriginal_output_tileSizeMinimum_2¶

name: outOriginal_output_tileSizeMinimum_2, type: IntVector6, persistent: no¶

inHandle_output_tileSizeOffset_0¶

name: inHandle_output_tileSizeOffset_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomTileSizeOffset,inUseCustomValidTileSizeOffset¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_output_tileSizeOffset_0¶

name: inCustom_output_tileSizeOffset_0, type: IntVector6, default: 0 0 0 0 0 0, deprecated name: inCustomTileSizeOffset,inCustomValidTileSizeOffset¶

outHasOriginal_output_tileSizeOffset_0¶

name: outHasOriginal_output_tileSizeOffset_0, type: Bool, persistent: no¶

outOriginal_output_tileSizeOffset_0¶

name: outOriginal_output_tileSizeOffset_0, type: IntVector6, persistent: no, deprecated name: outOriginalTileSizeOffset,outOriginalValidTileSizeOffset¶

inHandle_output_tileSizeOffset_1¶

name: inHandle_output_tileSizeOffset_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSizeOffset_1¶

name: inCustom_output_tileSizeOffset_1, type: IntVector6, default: 0 0 0 0 0 0¶

outHasOriginal_output_tileSizeOffset_1¶

name: outHasOriginal_output_tileSizeOffset_1, type: Bool, persistent: no¶

outOriginal_output_tileSizeOffset_1¶

name: outOriginal_output_tileSizeOffset_1, type: IntVector6, persistent: no¶

inHandle_output_tileSizeOffset_2¶

name: inHandle_output_tileSizeOffset_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_tileSizeOffset_2¶

name: inCustom_output_tileSizeOffset_2, type: IntVector6, default: 0 0 0 0 0 0¶

outHasOriginal_output_tileSizeOffset_2¶

name: outHasOriginal_output_tileSizeOffset_2, type: Bool, persistent: no¶

outOriginal_output_tileSizeOffset_2¶

name: outOriginal_output_tileSizeOffset_2, type: IntVector6, persistent: no¶

inHandle_output_stride_0¶

name: inHandle_output_stride_0, type: Enum, default: KeepOriginal, deprecated name: inUseCustomStride¶

Values:

Title	Name	Deprecated Name
Keep Original	KeepOriginal	FALSE,False
Use Custom	UseCustom	TRUE,True
Remove	Remove

inCustom_output_stride_0¶

name: inCustom_output_stride_0, type: Vector6, default: 1 1 1 1 1 1, deprecated name: inCustomStride¶

outHasOriginal_output_stride_0¶

name: outHasOriginal_output_stride_0, type: Bool, persistent: no¶

outOriginal_output_stride_0¶

name: outOriginal_output_stride_0, type: Vector6, persistent: no, deprecated name: outOriginalStride¶

inHandle_output_stride_1¶

name: inHandle_output_stride_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_stride_1¶

name: inCustom_output_stride_1, type: Vector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_stride_1¶

name: outHasOriginal_output_stride_1, type: Bool, persistent: no¶

outOriginal_output_stride_1¶

name: outOriginal_output_stride_1, type: Vector6, persistent: no¶

inHandle_output_stride_2¶

name: inHandle_output_stride_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_stride_2¶

name: inCustom_output_stride_2, type: Vector6, default: 1 1 1 1 1 1¶

outHasOriginal_output_stride_2¶

name: outHasOriginal_output_stride_2, type: Bool, persistent: no¶

outOriginal_output_stride_2¶

name: outOriginal_output_stride_2, type: Vector6, persistent: no¶

inHandle_output_valueMinimum_0¶

name: inHandle_output_valueMinimum_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMinimum_0¶

name: inCustom_output_valueMinimum_0, type: Double, default: 0¶

outHasOriginal_output_valueMinimum_0¶

name: outHasOriginal_output_valueMinimum_0, type: Bool, persistent: no¶

outOriginal_output_valueMinimum_0¶

name: outOriginal_output_valueMinimum_0, type: Double, persistent: no¶

inHandle_output_valueMinimum_1¶

name: inHandle_output_valueMinimum_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMinimum_1¶

name: inCustom_output_valueMinimum_1, type: Double, default: 0¶

outHasOriginal_output_valueMinimum_1¶

name: outHasOriginal_output_valueMinimum_1, type: Bool, persistent: no¶

outOriginal_output_valueMinimum_1¶

name: outOriginal_output_valueMinimum_1, type: Double, persistent: no¶

inHandle_output_valueMinimum_2¶

name: inHandle_output_valueMinimum_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMinimum_2¶

name: inCustom_output_valueMinimum_2, type: Double, default: 0¶

outHasOriginal_output_valueMinimum_2¶

name: outHasOriginal_output_valueMinimum_2, type: Bool, persistent: no¶

outOriginal_output_valueMinimum_2¶

name: outOriginal_output_valueMinimum_2, type: Double, persistent: no¶

inHandle_output_valueMaximum_0¶

name: inHandle_output_valueMaximum_0, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMaximum_0¶

name: inCustom_output_valueMaximum_0, type: Double, default: 0¶

outHasOriginal_output_valueMaximum_0¶

name: outHasOriginal_output_valueMaximum_0, type: Bool, persistent: no¶

outOriginal_output_valueMaximum_0¶

name: outOriginal_output_valueMaximum_0, type: Double, persistent: no¶

inHandle_output_valueMaximum_1¶

name: inHandle_output_valueMaximum_1, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMaximum_1¶

name: inCustom_output_valueMaximum_1, type: Double, default: 0¶

outHasOriginal_output_valueMaximum_1¶

name: outHasOriginal_output_valueMaximum_1, type: Bool, persistent: no¶

outOriginal_output_valueMaximum_1¶

name: outOriginal_output_valueMaximum_1, type: Double, persistent: no¶

inHandle_output_valueMaximum_2¶

name: inHandle_output_valueMaximum_2, type: Enum, default: KeepOriginal¶

Values:

Title	Name
Keep Original	KeepOriginal
Use Custom	UseCustom
Remove	Remove

inCustom_output_valueMaximum_2¶

name: inCustom_output_valueMaximum_2, type: Double, default: 0¶

outHasOriginal_output_valueMaximum_2¶

name: outHasOriginal_output_valueMaximum_2, type: Bool, persistent: no¶

outOriginal_output_valueMaximum_2¶

name: outOriginal_output_valueMaximum_2, type: Double, persistent: no¶

out_input_name_0¶

name: out_input_name_0, type: String¶

out_output_name_0¶

name: out_output_name_0, type: String¶

out_input_name_1¶

name: out_input_name_1, type: String¶

out_output_name_1¶

name: out_output_name_1, type: String¶

out_input_name_2¶

name: out_input_name_2, type: String¶

out_output_name_2¶

name: out_output_name_2, type: String¶

outUsed_input_dimensions_0¶

name: outUsed_input_dimensions_0, type: String, persistent: no, deprecated name: outUsedExternalToClassifierDimensionMapping,outUsedExternalToProcessorDimensionMapping¶

outUsed_input_dimensions_1¶

name: outUsed_input_dimensions_1, type: String, persistent: no¶

outUsed_input_dimensions_2¶

name: outUsed_input_dimensions_2, type: String, persistent: no¶
